Condition To Calculation Elements

The Calculation Condition allows for the application of logical dependencies depending on the nature or result of a calculation formula.

The Calculation Condition settings are as follows:

Numeric

  • “=” – equal to
  • “!= ” – not equal to
  • “>” – greater than
  • “≥” – greater than or equal to
  • “<” – less than
  • “≤” – less than or equal to

Text

  • “is empty”, meaning that the Calculation field has been left blank.
  • “is not empty, meaning that the Calculation Field has been filled.

Generic (beta version)

  • “is visible”, meaning the condition will activate if a certain Calculation Element field is made visible.
  • “is not visible”, meaning the condition will activate if a certain the Calculation Element field is not made visible.

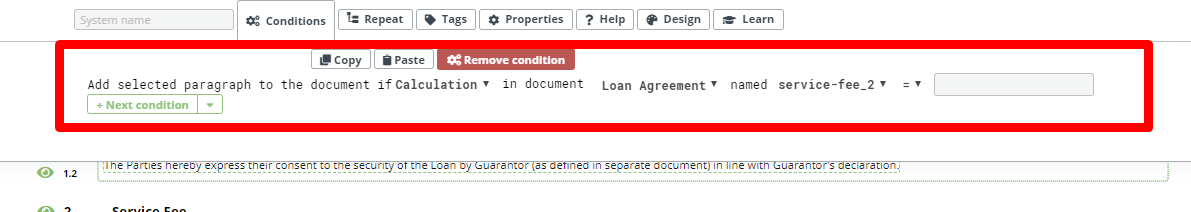

The above listed settings are found in the second to last dropdown selection in the Conditions Phrase, and once selected, the template designer will be prompted to choose a Calculation Value.

Below is an example of how to build a Condition for a Text Element, that will add content:

  1. Assign a System Name to the to the Calculation Element
  2. Click on the Element or Clause to be related to the Calculation Element
  3. Click the Conditions Tab in the top menu
  4. Click the “Add Conditions” Button

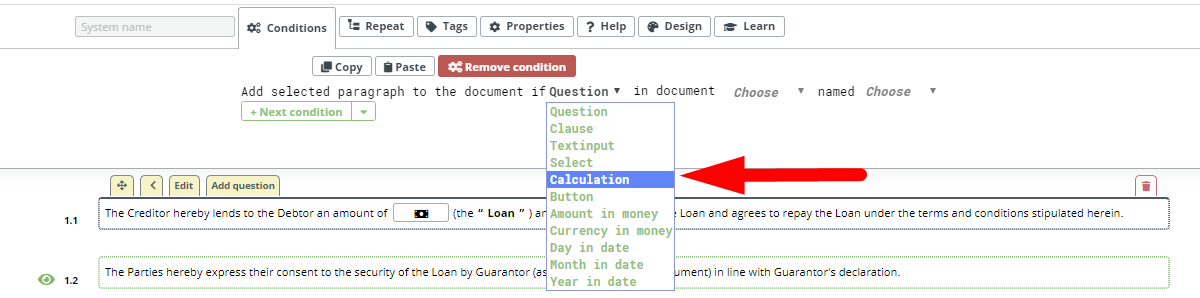

  5. Choose “Calculation” from the first dropdown (Type)
  6. Choose the name of the Template from the second dropdown
  7. Choose the Calculation System Name from the third dropdown

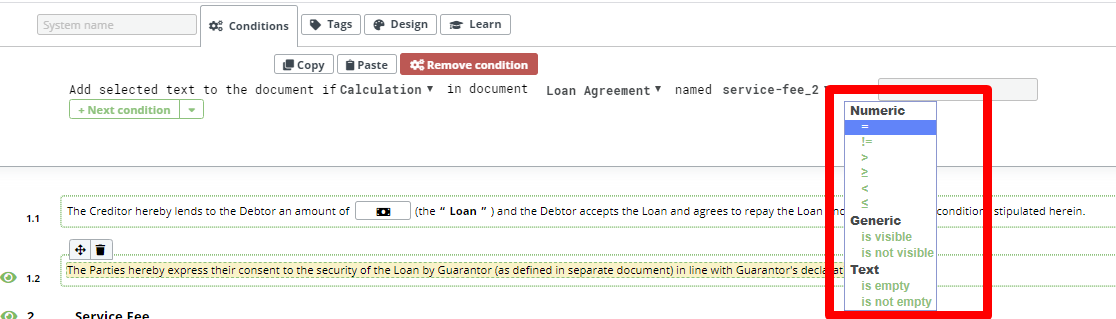

  8. Select the appropriate setting from the fourth dropdown to determine when the selected content will be added (or not added depending on your fourth dropdown selection)
  9. If a numeric value has been chosen in the previous step, choose the value option that will determine when the selected content will be added (or not added depending on your fourth dropdown selection)
